LK-15000C Belt Pulley Laser Alignment Tool
Description
By integrating precise alignment with stable transmission, this solution effectively maximizes operational efficiency while advancing energy saving and carbon reduction goals. Its magnetic design ensures portable, intuitive use without compromising on precision performance, offering a seamless user experience.
Furthermore, the system is fully compatible with all types of pulleys, removing any limitations regarding grooves or tooth profiles. To ensure total accuracy, the adjustable calibrators specifically address eccentric misalignment issues, making it an ideal fit for pulleys of varying widths.
Features
- Efficient & Eco-friendly: Precise alignment ensures stable transmission while reducing energy consumption.
- Magnetic & Intuitive: Portable magnetic design for effortless setup and high-precision performance.
- Universal Compatibility: Works with all pulley types, regardless of groove or tooth profiles.

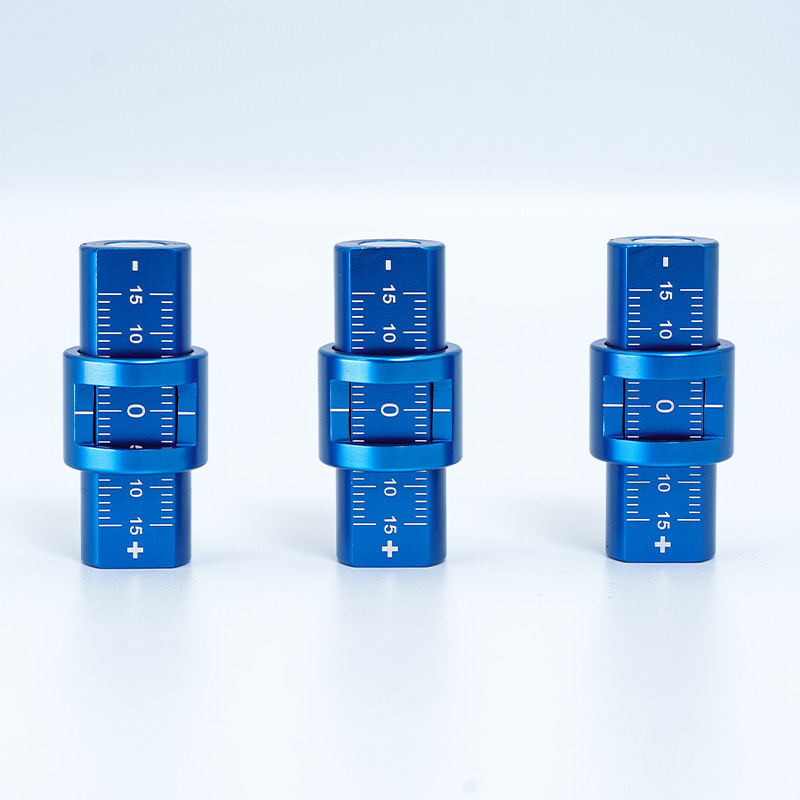

- Adjustable Calibration: Easily corrects eccentric misalignment across various pulley widths.

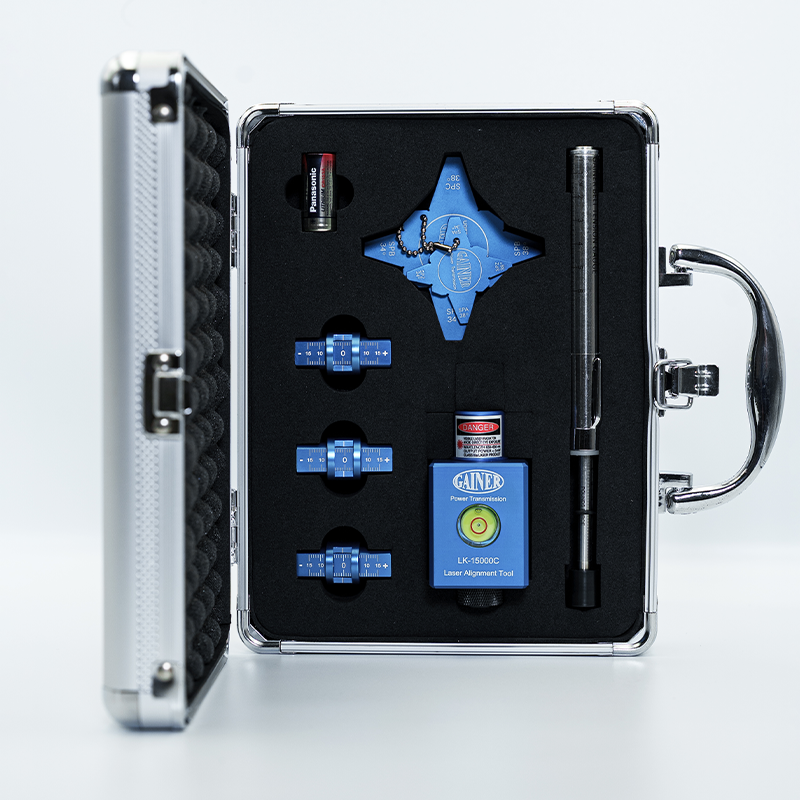

Accessories
Specification
| Brush Size | 1008 | 1108 | 1210 | 1610 | 1615 | 2012 | ||
|---|---|---|---|---|---|---|---|---|
| Outer diameter | D | mm | 35.0 | 38.0 | 47.5 | 57.0 | 70.0 | 85.5 |
| Length | L | mm | 22.3 | 22.3 | 25.4 | 38.1 | 38.1 | 44.5 |
| Screw | Screw | Inches | 1/4 x 1/2 | 1/4 x 1/2 | 3/8 x 5/8 | 3/8 x 5/8 | 3/8 x 5/8 | 1/2 x 1 |
| Wrench | Wrench | No | 3 | 3 | 5 | 5 | 5 | 6 |
| Torque | Torque | Nm | 5.7 | 5.7 | 20 | 20 | 20 | 49 |
| Weight | Weight | kg | 0.12 | 0.16 | 0.28 | 0.61 | 0.61 | 1.1 |
| Hole diameter | Bore | mm | 09-25 | 09-28 | 11-32 | 14-42 | 14-42 | 16-60 |
Installation

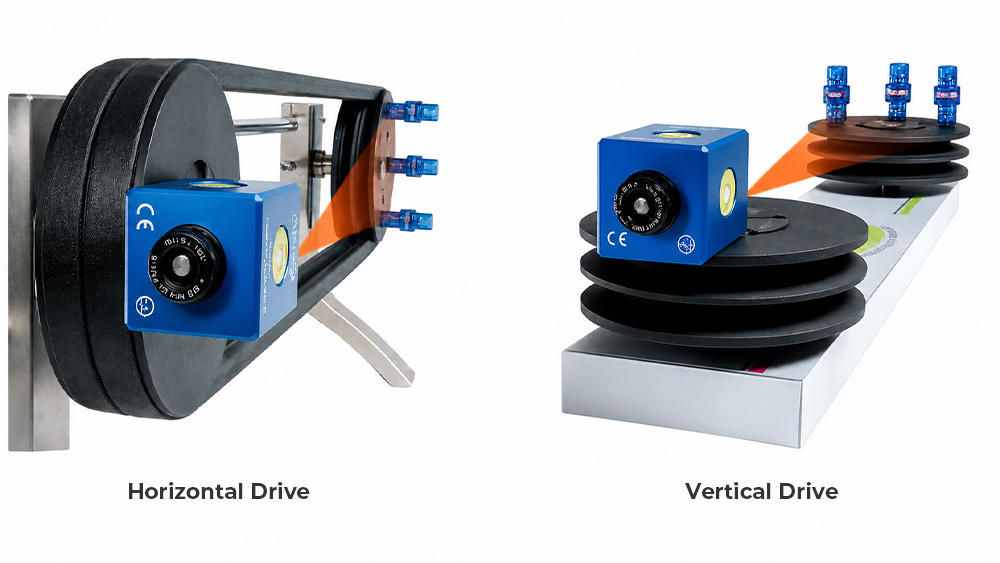

Pulley Transmission Method
